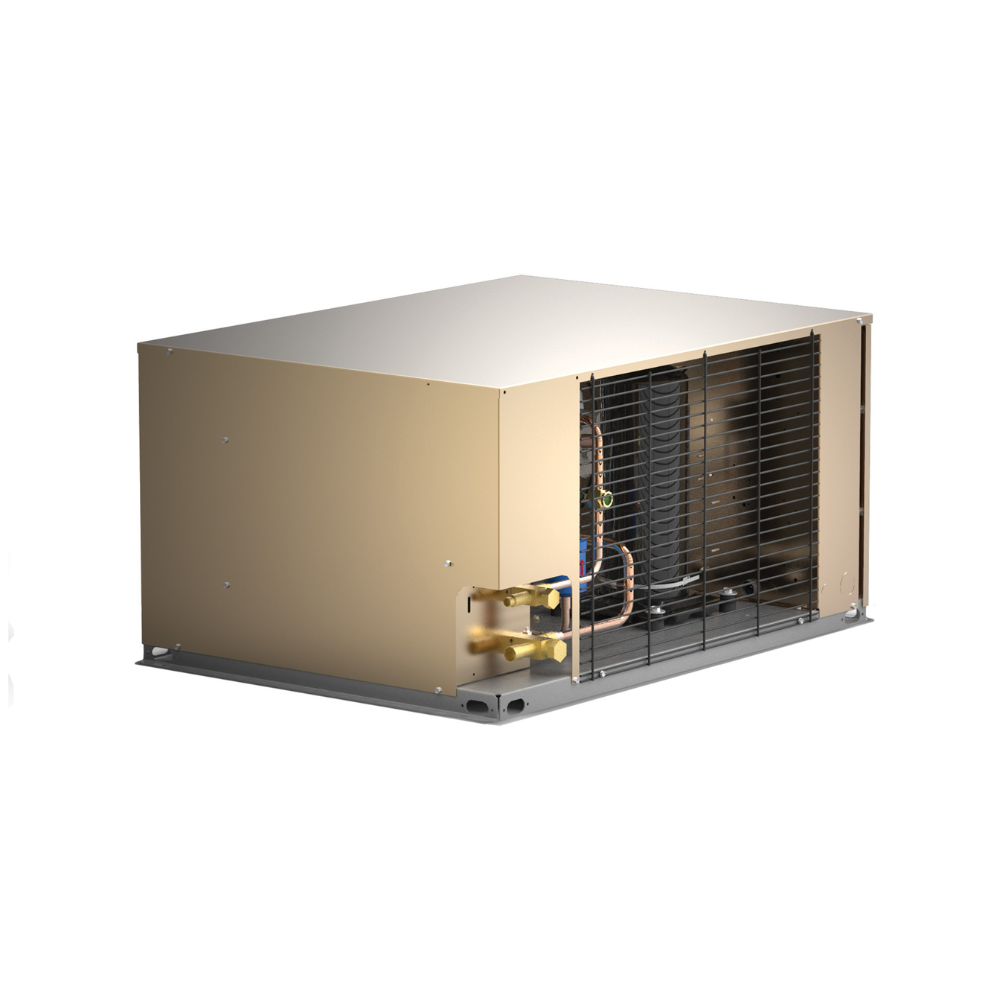

CCH0005MBACZ 0.5HP MED

CU CC SCRL 0.5HP 208-230/1/60 MED
Ambient Temp : 95 °F
Suction Temp : 25 °F
Voltage : 208-230/1/60
Application Capacity* : 7,020 BTU/H
Refrigerant Type : R448A
AWEF Value : 7.6

$ 3,129.34 3129.34 CAD $ 3,129.34

$ 3,129.34

HP
Temp Range
Voltage

This combination does not exist.

HP: 0.5

Temp Range: Medium Temp

Voltage: 208-230/1/60

Documents

CCH0005MBACZA0000.pdf

Collapsible Product Specs

Family & Application

Family	HTS
Application	Outdoor
Temperature Range	Medium Temp
Voltage (Volts/Ph/Hz)	208-230/1/60
Refrigerant Type	R404A
Piping	Standard
Compressor Brand	Copeland
Compressor Type	Scroll
Compressor Hp	0.5
Compressor Model	ZB06KAE-PFV
Number of Compressor(s)	1
Coil Type	Microchannel
Note	This equipment meets the regulatory requirements for hydrofluorocarbons as of the manufacturing date. Only those refrigerants approved in the state for specific end uses may be used.

Technical Information & Performance Data

Electrical Data

Unit Specifications & Sound Data

Documents, Prints, etc.

Ambient Temperature (°F)	95
Saturated Suction Temperature (°F)	25
Application Capacity* (BTU/H)	7,660
Altitude (ft)	0
AWEF Value	7.6

Compressor(s) RLA	5.4
Compressor(s) LRA	36
Fan Motor(s) Quantity	1
Fan Motor(s) Hp	1/15
Fan Motor(s) FLA	0.5
Defrost Type	AIR DEFROST
High or Low Amps?	-
Number of Contactors	-
MCA	15
MOPD	15
Evap. Fan Amps	5
Defrost Heater Amps	15

Liquid Line (in)	0.375
Suction (in)	0.625
Standard	9 - 14
Over Sized	61
Fan Blade(s) Diameter (in)	167
Sound Data (dB)	—
Approx. Net Weight (lbs)	—

Ambient Temperature (°F)	95
Saturated Suction Temperature (°F)	25
Application Capacity* (BTU/H)	7,660
Altitude (ft)	0
AWEF Value	7.6

Compressor(s) RLA	5.4
Compressor(s) LRA	36
Fan Motor(s) Quantity	1
Fan Motor(s) Hp	1/15
Fan Motor(s) FLA	0.5
Defrost Type	AIR DEFROST
High or Low Amps?	-
Number of Contactors	-
MCA	15
MOPD	15
Evap. Fan Amps	5
Defrost Heater Amps	15
