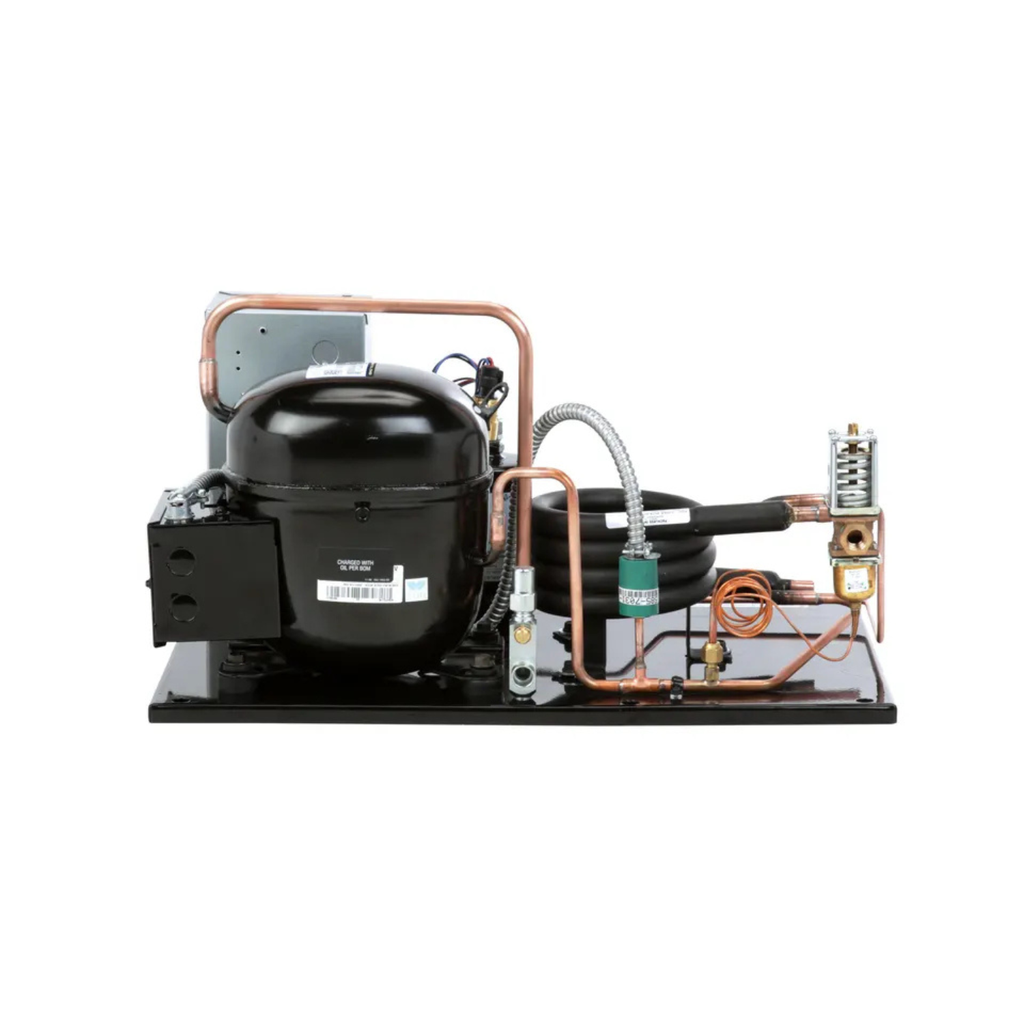

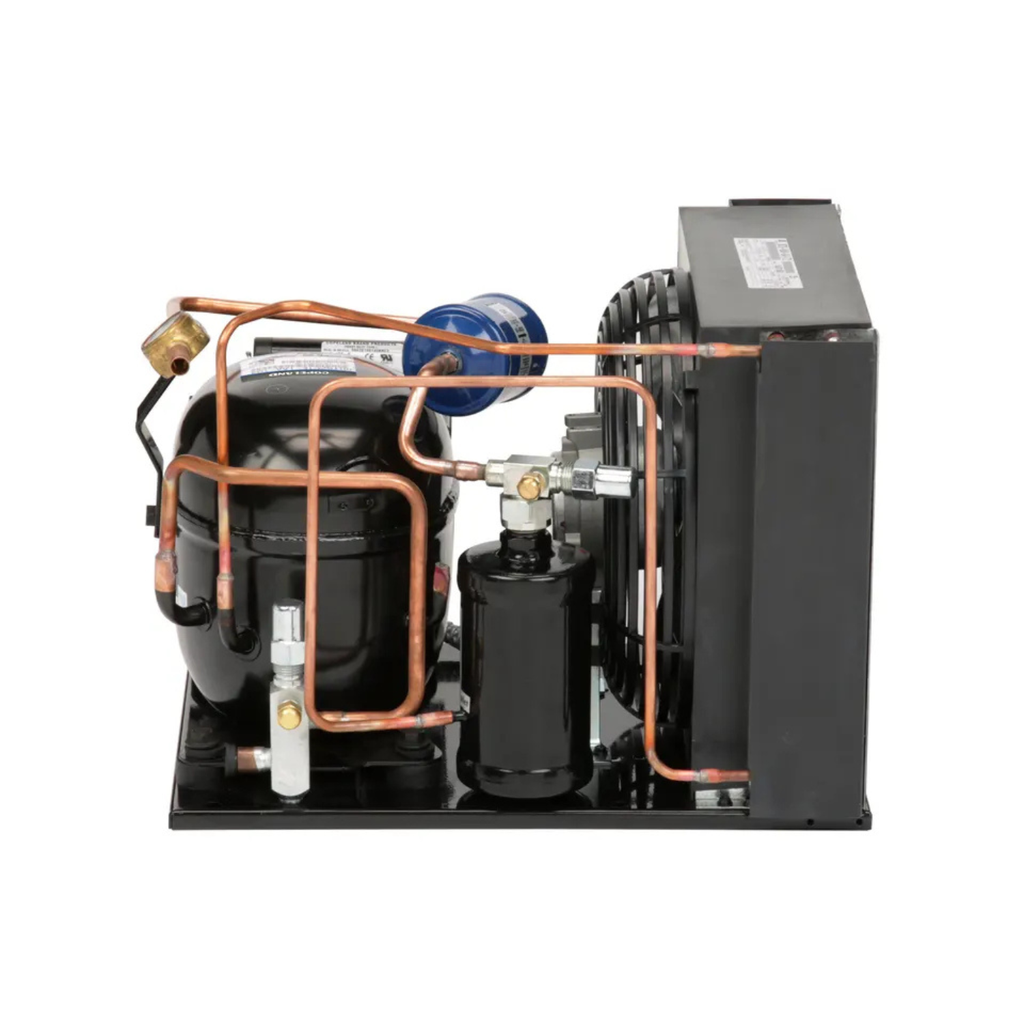

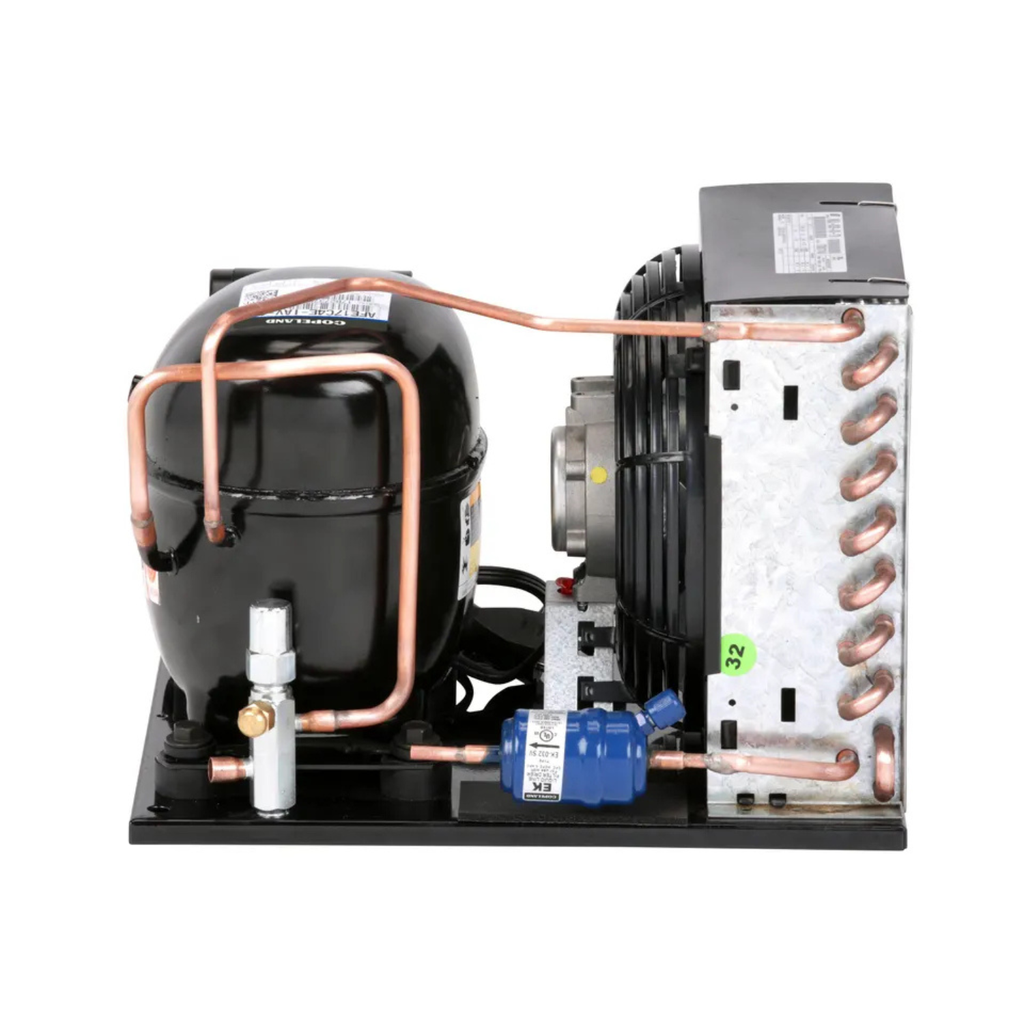

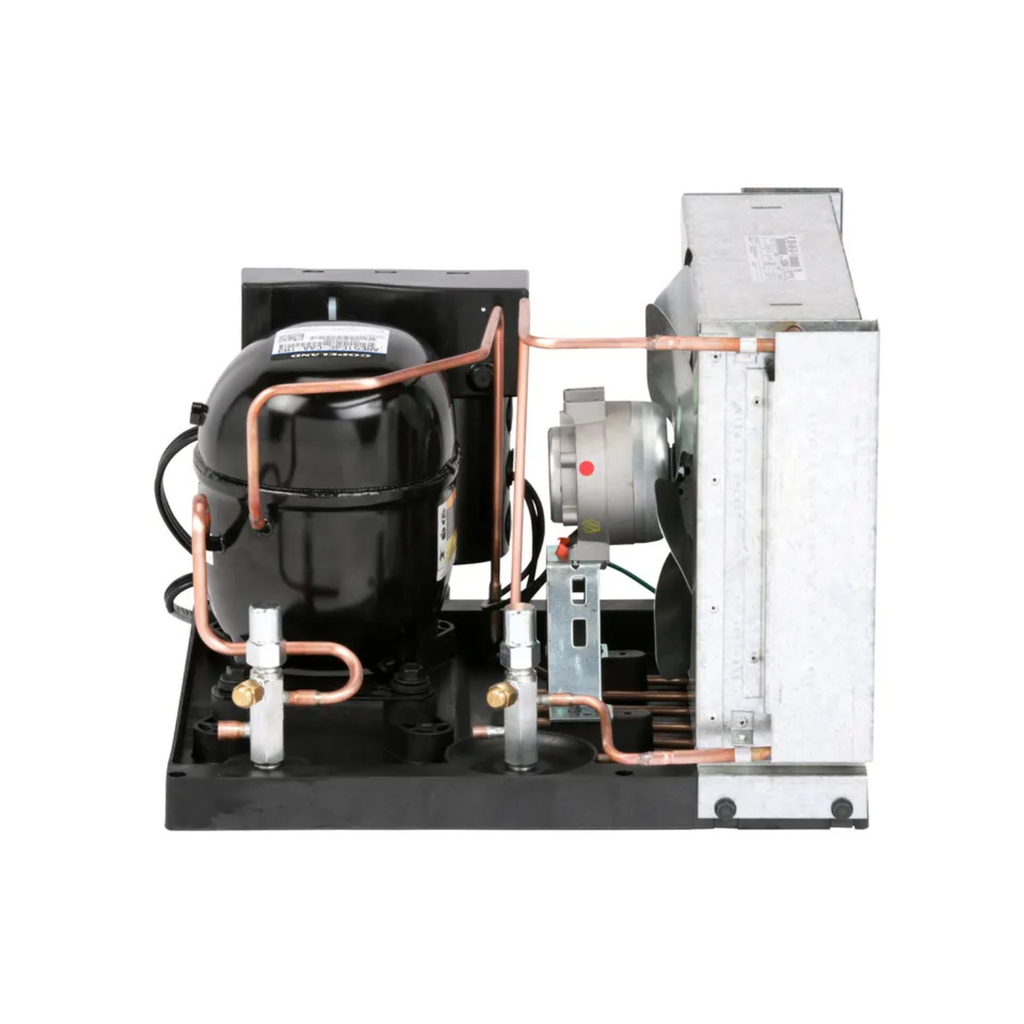

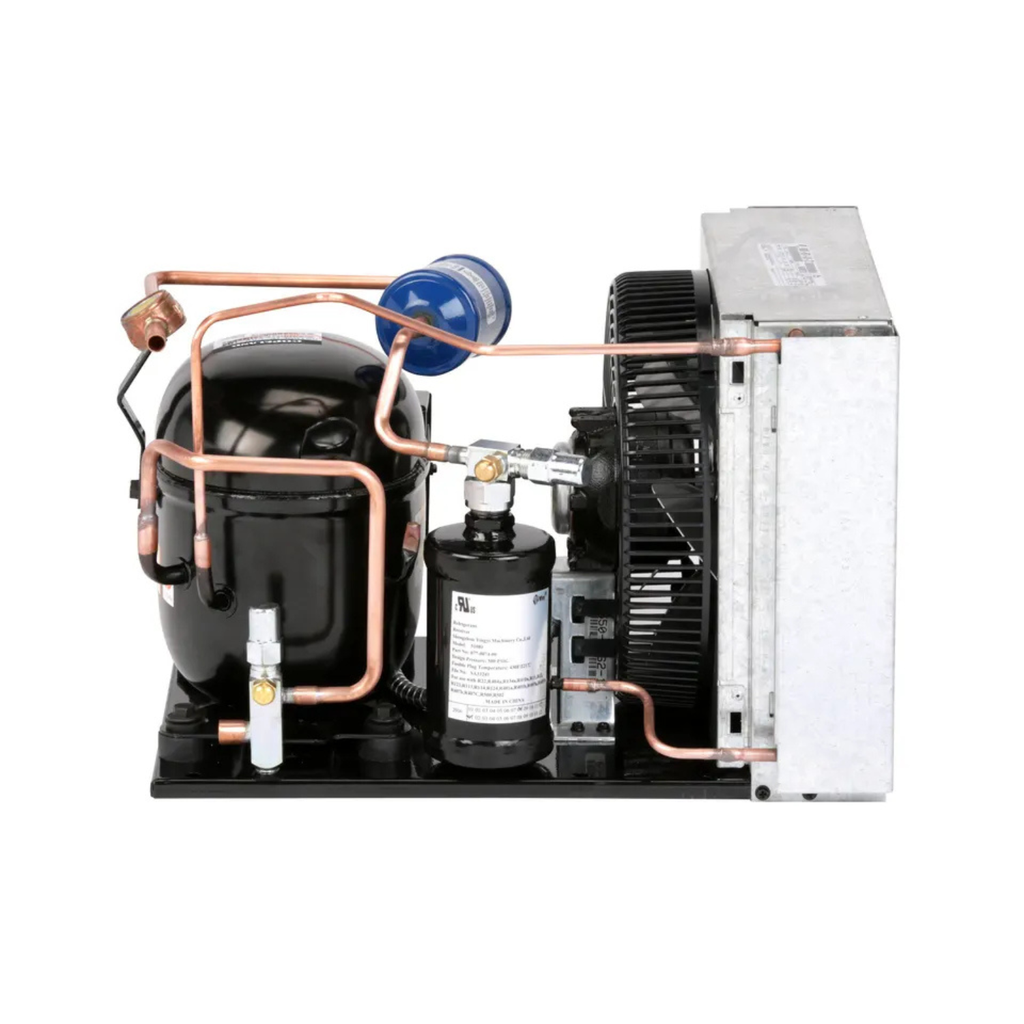

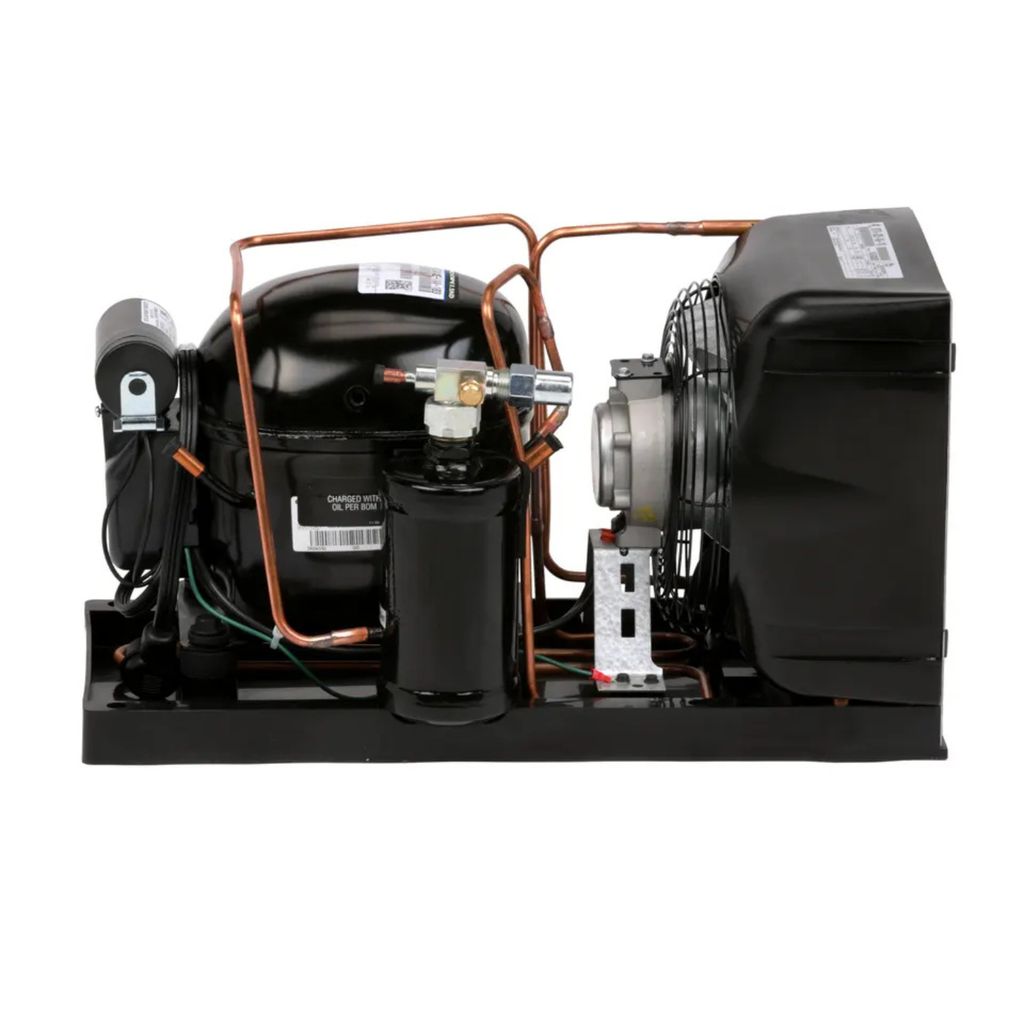

M6BP-0075-CAV-177 COPELAND HERMETIC CONDENSING UNIT LOW/MED

M6BP-0075-CAV-177 COPELAND HERMETIC CONDENSING UNIT LOW/MED

Primary Applications: Reach-Ins, Preparation Tables, Under Counter, Self Contained Display Cases, Air Dryers. Range: 1/6 - 3/4 HP

$ 1,480.00 1480.0 CAD $ 1,480.00

$ 1,480.00

This combination does not exist.

Copeland

Documents

M6BP-0106-CFV-177_R-404A_60Hz_208_230v-.pdf

TroubleshootingSummary M6BP-0075-CAV-177.pdf

Collapsible Product Specs

General Info

Model No	M6BP-0075-CAV-177
Serial No	*******
Refrigerant	R-404A
Frequency (Hz)	60
Voltage	208/230
Application	Ext. Medium Temp.
Phase	1
Compressor	RST55C1E-CAV-104
Status	Active

Mechanical

Length (in)	24.00
Width (in)	16.69
Height (in)	13.64
Reference Drawing	496-7146-12
Hold Capacity (kg)	NA
Copevap Water Storage	NA
Liquid Size (in)/Type	0.375 SWEAT
Suction Size (in)/Type	0.5 SWEAT
Water Inlet (in)	NA
Water Outlet (in)	NA

Electrical

Performance

	LOW TEMP.	MID TEMP.
Ambient Air Temp. (°F)	90	90
Evaporator Temp. (°F)	-10	25
Condensing Temp. (°F)	103.3	115
Return Gas Temp. (°F)	40	40
Subcooling (F)	5	5
Capacity (W)	3290	6660
Power (W)	803	1165
EER (Btu/Wh)	4.1	5.7
