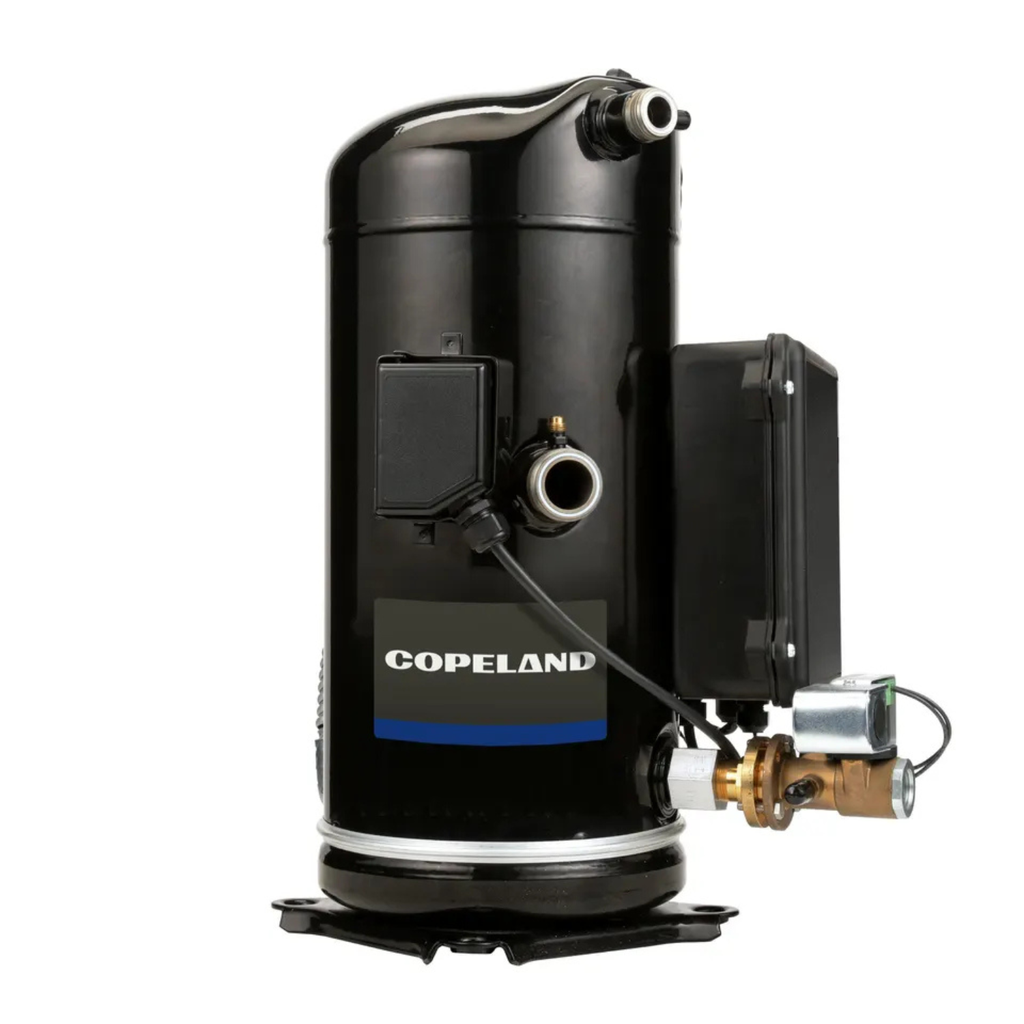

ZFD25KVE-TFE-261 COPELAND SCROLL DIGITAL REFRIGERATION COMPRESSOR

ZFD25KVE-TFE-261 COPELAND SCROLL DIGITAL REFRIGERATION COMPRESSOR

The Copeland Scroll Digital Refrigeration compressor family is designed for superior efficiency and performance for low temperature applications.

$ 6,800.00 6800.0 CAD $ 6,800.00

$ 6,800.00

This combination does not exist.

Copeland

Documents

TroubleshootingSummary ZFD25KVE-TFE-262.pdf

Collapsible Product Specs

General Info

Model No	ZFD25KVE-TFE
Serial No	25A0035CD
Refrigerant	R-404A
Frequency (Hz)	60
Voltage	575
Application	Low Temp
Phase	3
Status	OEM Production
Product Type	Scroll

Mechanical

Overall Dimensions (in)	9.7L x 10.1W x 18.9H
Mounting Dimensions (in)	7.5L x 7.5W
Suction Size (in)/Type	7/8 Stub
Discharge Size (in)/Type	3/4 Stub
Oil	POE (Polyol Ester Oil)
Oil Charge (oz)	64
Oil Recharge (oz)	60
Net Weight (lb)	95
Internal Free Volume (in^3)	--

Electrical

Performance

	#1	#2
Capacity (Btu/hr)	36,600	25,500
Evaporator Temp. (°F)	-25	-40
Condensing Temp. (°F)	105	105
Return Gas Temp. (°F)	65	65
Subcooling (F)	0	0
Power (W)	5,950	5,180
EER (Btu/Wh)	6.15	4.92
Current (Amps)	7.1	6.4
