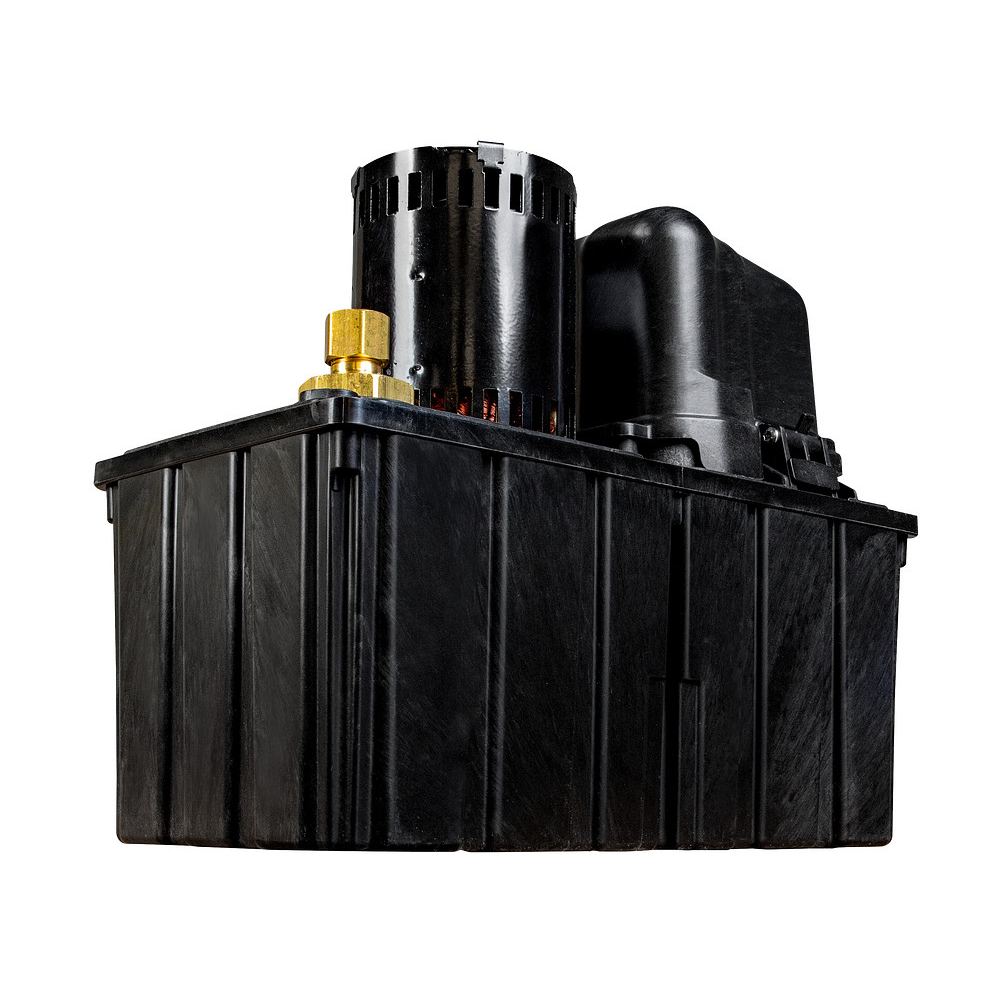

HT-VCL-30-P SERIES HIGH-TEMP CONDENSATE PUMP

The HT-VCL-30P 115 Volt high-temperature condensate removal pump with 1-gallon collection tank is designed for plenum applications with the capability to handle the most difficult commercial applications.

$ 399.00 399.0 CAD $ 399.00

$ 399.00

This combination does not exist.

Documents

M5161_HT-VCL_Series_Spec_Sheet.pdf

Collapsible Product Specs

Ratings

Liquid

Materials of Construction

Installation

Other

Documents, Prints, etc.

HP	1/8 hp
Frequency	60 Hz
Amps - Full Load	1.9 A
Full Load Watts	134 W
Volts	115 VAC
Cord Length	14 ft
Continuous Duty	No
Maximum Flow Rate - 60Hz	5.83 gpm / 350 gph
Max PSIG	13.9 PSI
Shut-Off	32 ft
Maximum Suction Lift	9.75 Meters
Safety Switch	Yes
Tank Capacity	1 gal

Pump Base Material	Polypropylene
Pump Body Material	Polypropylene
Impeller Type	Closed
Impeller Material	Noryl
Check Valve	Yes
Engine Type For Driven Pumps	Not Applicable

Discharge Type	Barb
Discharge	0.38 "
Suction Type	Screened
Product Length	12 "
Product Width	6 "
Product Height	10.2 "
Pump Length	12 "
Product Weight	11 lb
Product Weight w/ Pack	11 lb
Carton Length	15.12 "
Carton Width	8.25 "
Carton Height	12.56 "
Tubing Included	No

HP	1/8 hp
Frequency	60 Hz
Amps - Full Load	1.9 A
Full Load Watts	134 W
Volts	115 VAC
Cord Length	14 ft
Continuous Duty	No
Maximum Flow Rate - 60Hz	5.83 gpm / 350 gph
Max PSIG	13.9 PSI
Shut-Off	32 ft
Maximum Suction Lift	9.75 Meters
Safety Switch	Yes
Tank Capacity	1 gal

Pump Base Material	Polypropylene
Pump Body Material	Polypropylene
Impeller Type	Closed
Impeller Material	Noryl
Check Valve	Yes
Engine Type For Driven Pumps	Not Applicable
