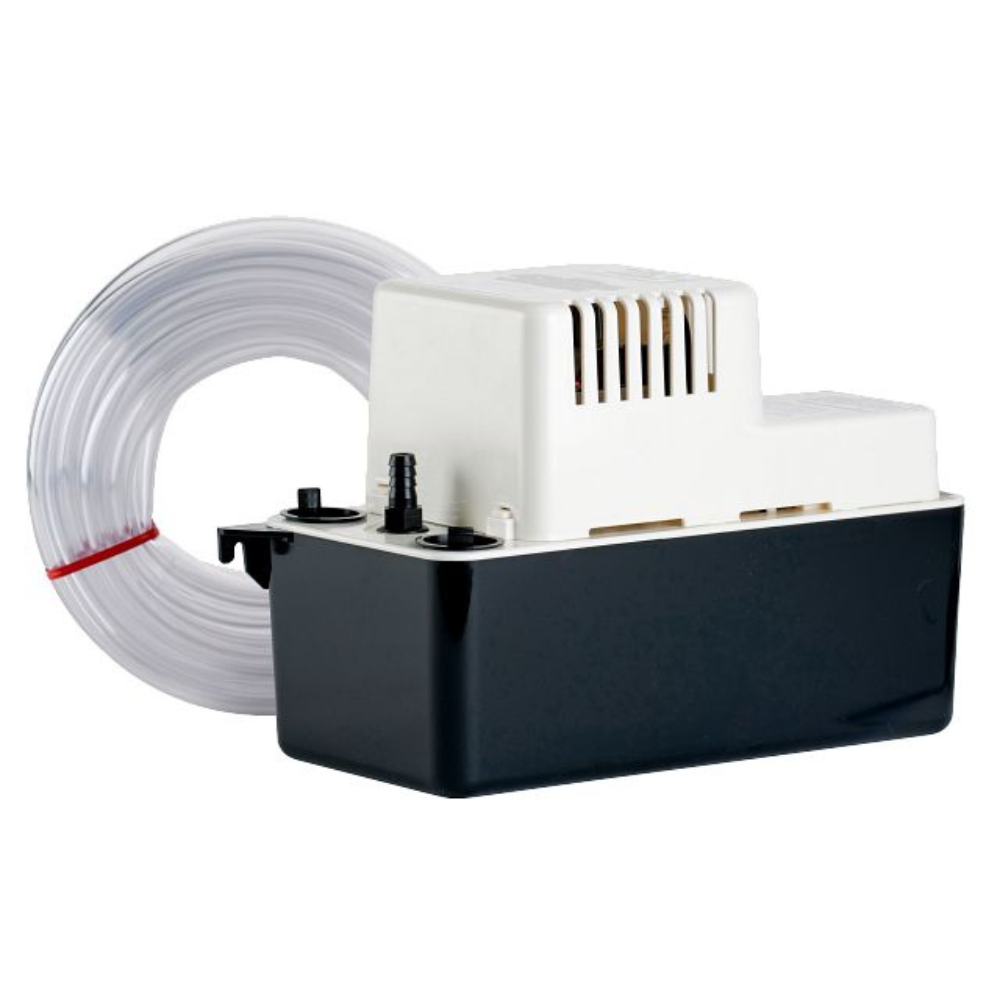

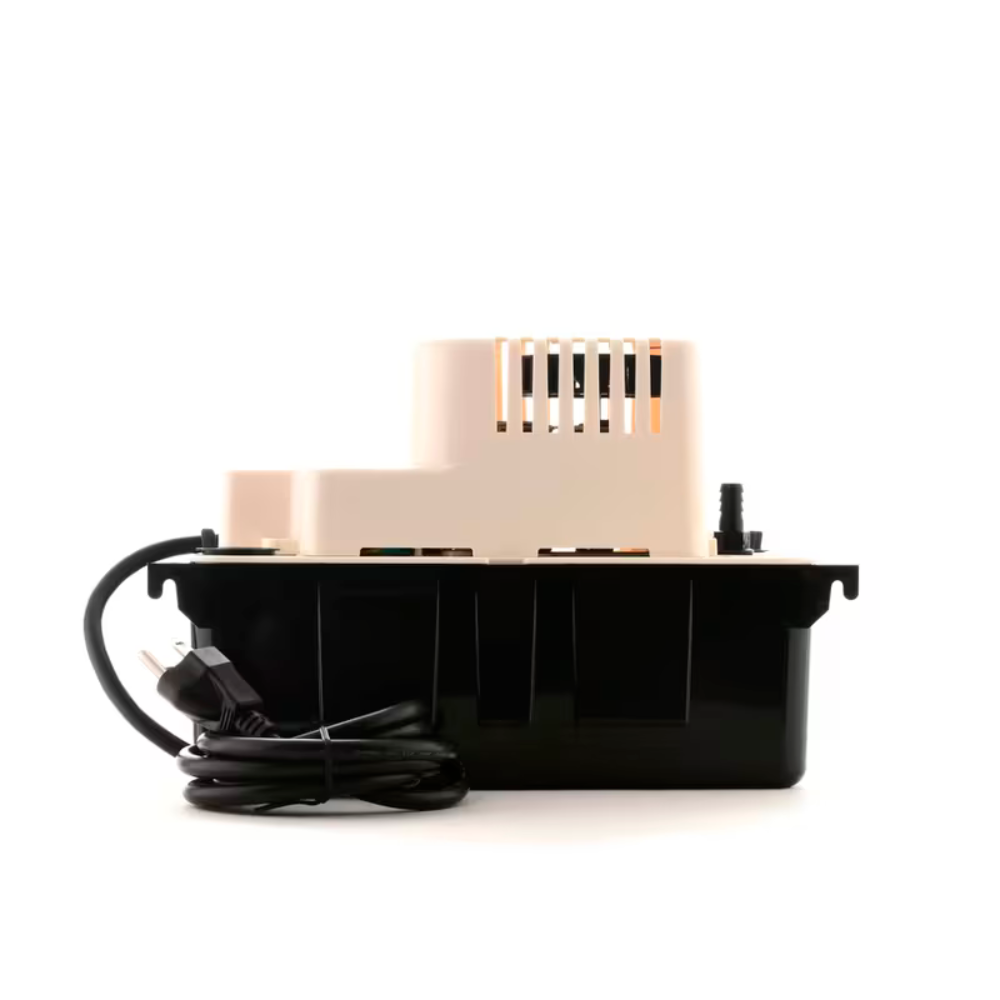

VCMA-15UL SERIES CONDENSATE PUMP

The VCMA-15UL is ideal for automatic collection and removal of condensate from air conditioning, refrigeration and de-humidification equipment when gravity drainage is not possible or practical.

$ 69.00 69.0 CAD $ 69.00

$ 69.00

This combination does not exist.

Documents

995124_VCMA-15_Spec_Sheet.pdf

Collapsible Product Specs

Ratings

HP	1/50 hp
Frequency	60 Hz
Amps - Full Load	1 A
Full Load Watts	60 W
Volts	115 VAC
Cord Length	6 ft
Continuous Duty	Yes
Maximum Flow Rate - 60Hz	1.08 gpm / 65 gph
Flow Rate At 1ft	1.08 gpm / 65 gph
Max PSIG	6.5 PSI
Shut-Off	15 ft
Maximum Suction Lift	4.5 Meter
Safety Switch	No
Tank Capacity	0.5 gal

Liquid

Materials of Construction

Installation

Other

Documents, Prints, etc.

Pump Base Material	Plastic
Pump Body Material	Plastic
Impeller Type	Semi-open
Impeller Material	GF Polypropylene
Check Valve	Yes

Discharge Type	Barb
Discharge	0.38 "
Suction Type	Screened
Product Length	11 "
Product Width	5 "
Product Height	7 "
Pump Length	11 "
Product Weight	3.9 lb
Product Weight w/ Pack	4.4 lb
Carton Length	12 "
Carton Width	5 "
Carton Height	7.13 "
Tubing Included	No

Accessories Included	Removable 3/8" barbed check valve
Electrical Agency Approvals	CSA/UL

Pump Base Material	Plastic
Pump Body Material	Plastic
Impeller Type	Semi-open
Impeller Material	GF Polypropylene
Check Valve	Yes

Discharge Type	Barb
Discharge	0.38 "
Suction Type	Screened
Product Length	11 "
Product Width	5 "
Product Height	7 "
Pump Length	11 "
Product Weight	3.9 lb
Product Weight w/ Pack	4.4 lb
Carton Length	12 "
Carton Width	5 "
Carton Height	7.13 "
Tubing Included	No
