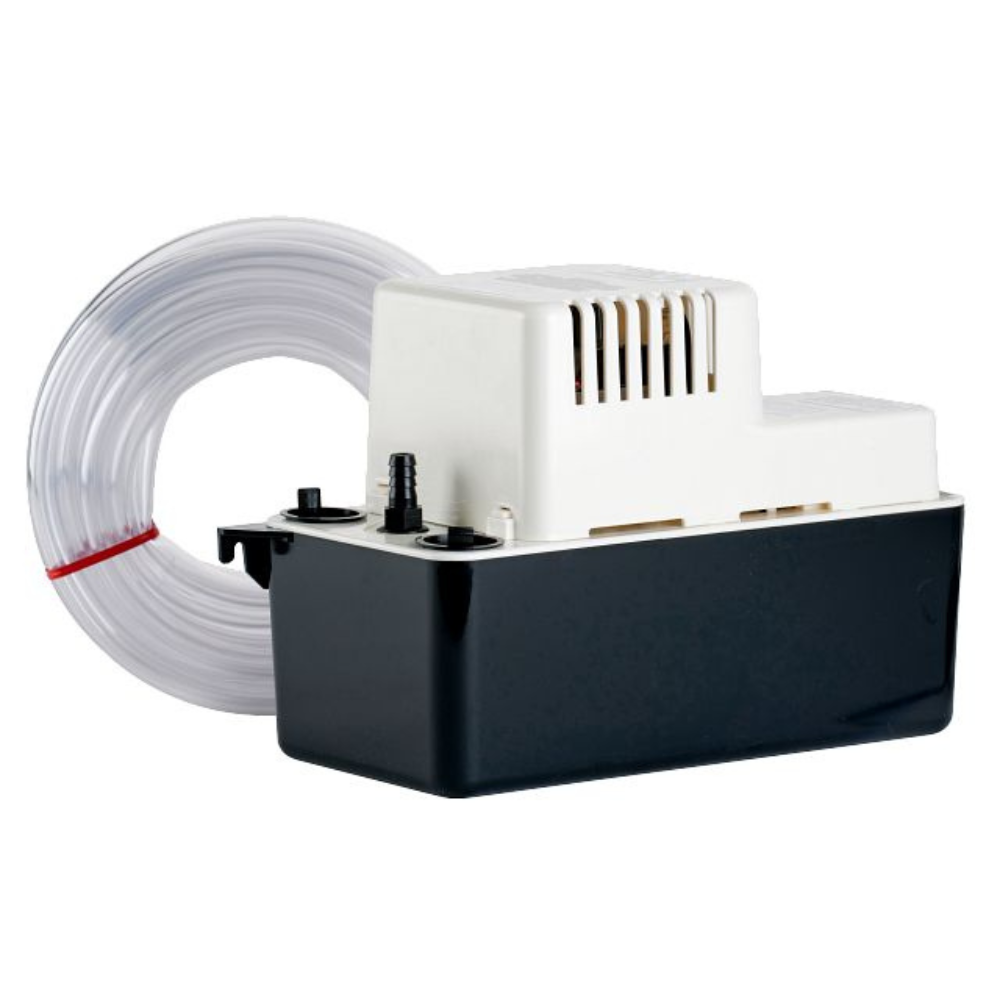

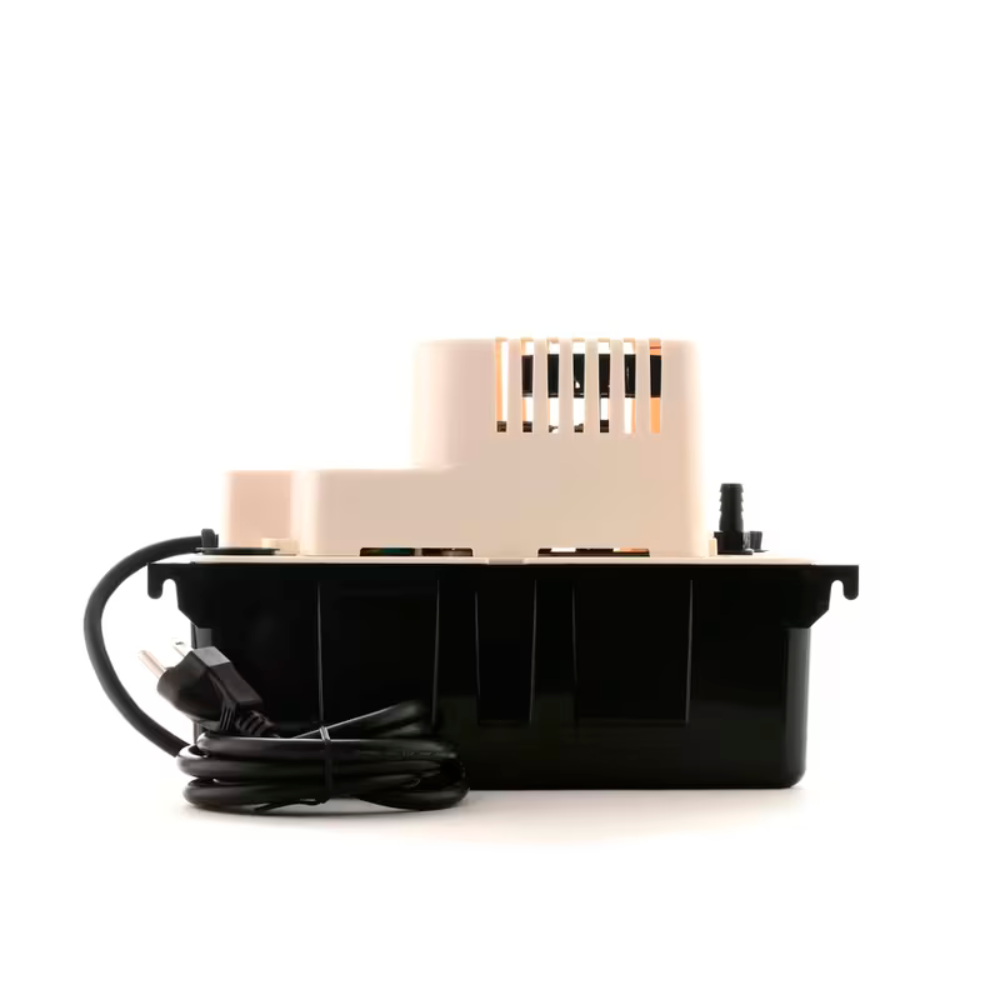

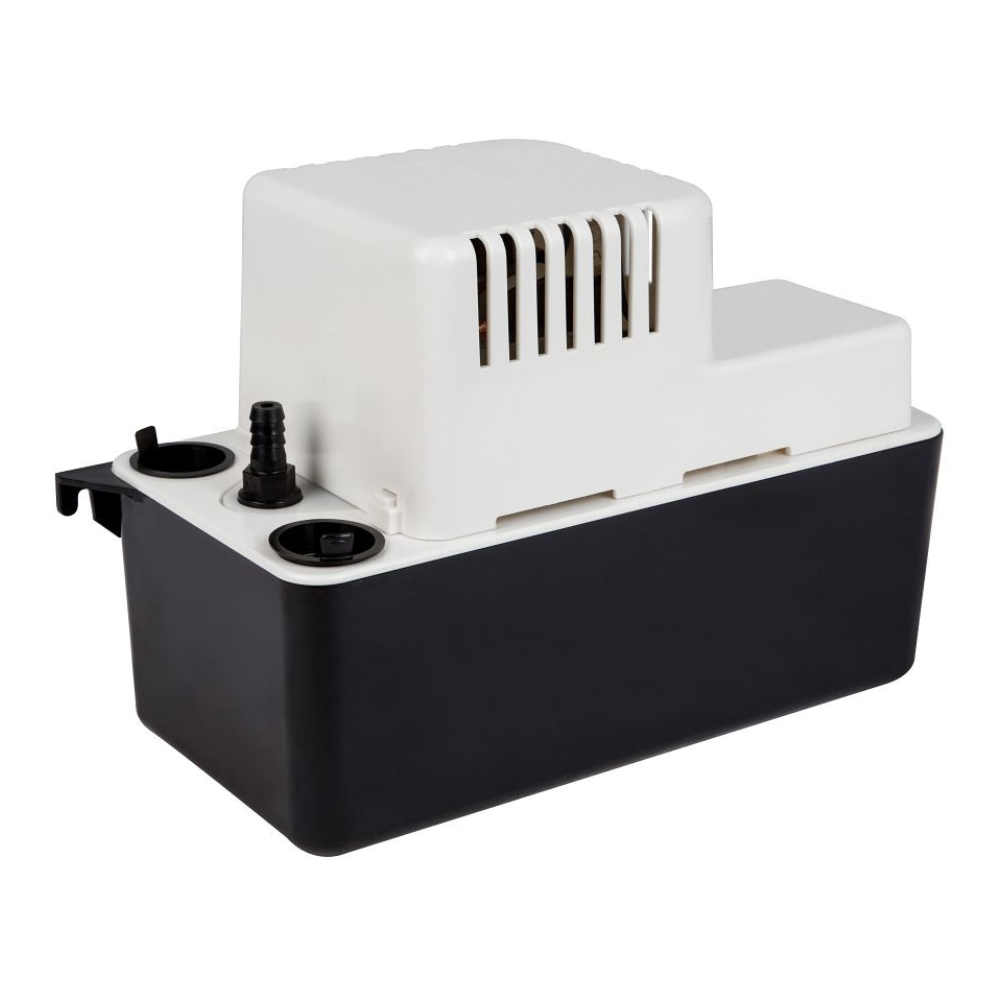

VCMA-15ULS SERIES CONDENSATE PUMP

VCMA-15ULS Condensate Removal Pump, 1/50 hp, 115 V, 60 Hz, 6' cord, 65 gph @ 1 ft, with Safety Switch. The VCMA-15 Series with a 1/50 hp condensate pump is great for collecting, detecting, and removing condensation from air conditioners.

$ 72.00 72.0 CAD $ 72.00

$ 72.00

This combination does not exist.

Documents

995124_VCMA-15_Spec_Sheet.pdf

Collapsible Product Specs

Ratings

HP	1/50 hp
Frequency	60 Hz
Amps - Full Load	1 A
Full Load Watts	60 W
Volts	115 VAC
Cord Length	6 ft
Continuous Duty	No
Maximum Flow Rate - 60Hz	1.08 gpm / 65 gph
Flow Rate At 1ft	1.08 gpm / 65 gph
Max PSIG	6.5 PSI
Max Flow Rate - 50Hz	1.08 gpm / 65 gph
Shut-Off	15 ft
Maximum Suction Lift	4.5 Meter
Max Solid Handling Size	0 "
Safety Switch	Yes
Tank Capacity	0.5 gal

Liquid

Materials of Construction

Installation

Other

Documents, Prints, etc.

Pump Base Material	Plastic
Pump Body Material	Plastic
Impeller Type	Semi-open
Impeller Material	GF Polypropylene
Check Valve	Yes

Discharge Type	Barb
Discharge	0.38 "
Suction Type	Screened
Product Length	11 "
Product Width	5 "
Product Height	7 "
Pump Length	11 "
Product Weight	4.5 lb
Product Weight w/ Pack	5 lb
Carton Length	12 "
Carton Width	5 "
Carton Height	7.13 "
Tubing Included	No

Accessories Included	Removable 3/8" barbed check valve
Electrical Agency Approvals	CSA/UL

Pump Base Material	Plastic
Pump Body Material	Plastic
Impeller Type	Semi-open
Impeller Material	GF Polypropylene
Check Valve	Yes

Discharge Type	Barb
Discharge	0.38 "
Suction Type	Screened
Product Length	11 "
Product Width	5 "
Product Height	7 "
Pump Length	11 "
Product Weight	4.5 lb
Product Weight w/ Pack	5 lb
Carton Length	12 "
Carton Width	5 "
Carton Height	7.13 "
Tubing Included	No
