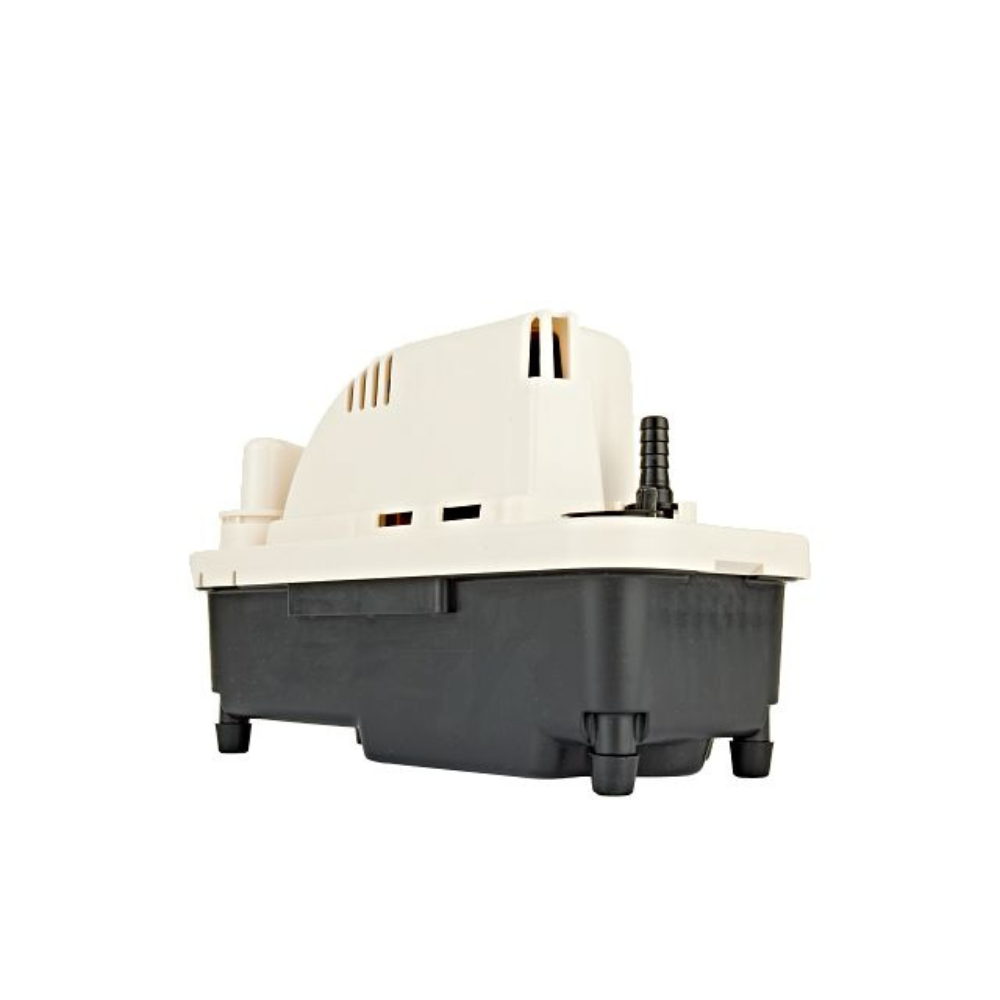

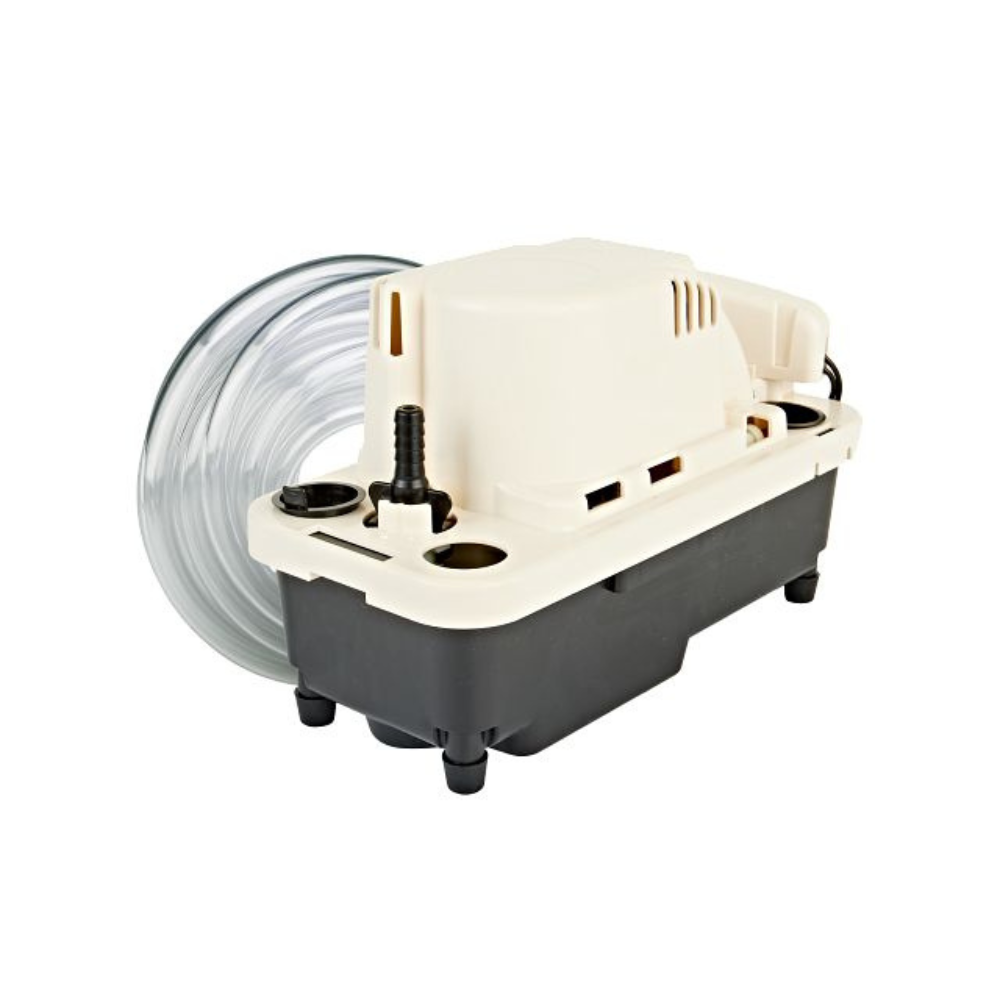

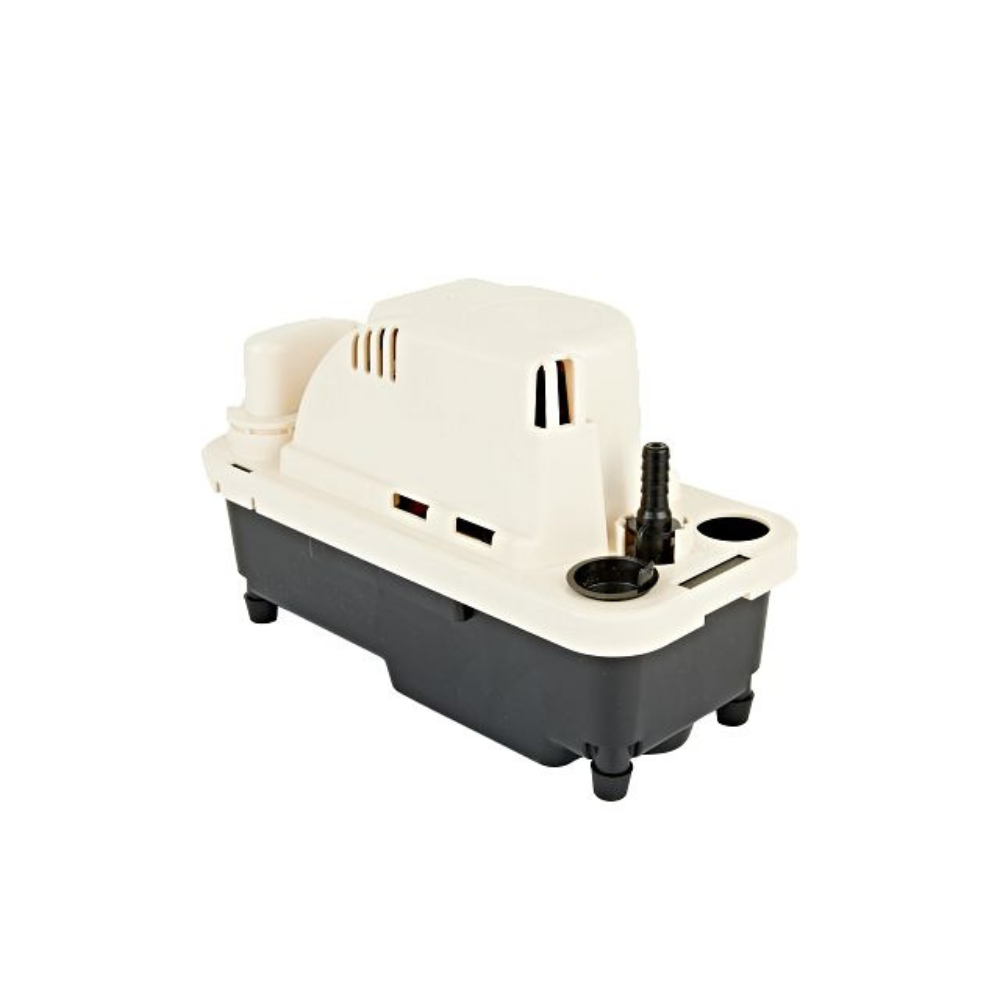

VCMA-20-PRO Series Condensate Pump

VCMA-20UL-PRO Condensate Removal Pump, 1/30 hp, 115 V, 60 Hz, 6' cord, 84 gph @ 1 ft. VCMA-20-PRO Series effectively delivers high-efficiency condensate removal from air conditioners, gas furnaces, and condensing boilers.

$ 82.00 82.0 CAD $ 82.00

$ 82.00

This combination does not exist.

Documents

1000014025_VCMA-PRO_Spec_Sheet.pdf

Collapsible Product Specs

Ratings

Liquid

Materials of Construction

Installation

Other

Accessories / Repair Kits

Tank: 154390
Rubber Feet: 925047
Check Valve 3/8": 154724
Tank Bracket: 154483
T-20/25: One carton of 25 pieces of 20' (6.01m) length 3/8"" (9.5 mm) ID VC tubing 599033
T-3/8: 100' (640.1 m) of 3/8"" (9.5 mm) ID x1/2"" (12.37 mm) OD clear tubing 599107
CV-X38: 3/8"" (9.5 mm) OD rigid plastic or copper tubing 599058
Anti-Sweat Sleeve VCMX-CK: 10000014026
Check Valve 1/4"" OD: 154725

Documents, Prints, etc.

HP	1/30 hp
Frequency	60 Hz
Amps - Full Load	1.5 A
Full Load Watts	93 W
Volts	115 VAC
Cord Length	6 ft
Continuous Duty	No
Maximum Flow Rate - 60Hz	1.4 gpm / 84 gph
Flow Rate At 1ft	1.4 gpm / 84 gph
Max PSIG	9.1 PSI
Max Flow Rate - 50Hz	1.4 gpm / 84 gph
Shut-Off	21 ft
Safety Switch	No

Discharge	0.38 "
Product Length	10.23 "
Product Width	4.75 "
Product Height	6.46 "
Product Weight	5.5 lb
Product Weight w/ Pack	5.5 lb
Carton Length	12 "
Carton Width	4.81 "
Carton Height	6.44 "
Tubing Included	No

HP	1/30 hp
Frequency	60 Hz
Amps - Full Load	1.5 A
Full Load Watts	93 W
Volts	115 VAC
Cord Length	6 ft
Continuous Duty	No
Maximum Flow Rate - 60Hz	1.4 gpm / 84 gph
Flow Rate At 1ft	1.4 gpm / 84 gph
Max PSIG	9.1 PSI
Max Flow Rate - 50Hz	1.4 gpm / 84 gph
Shut-Off	21 ft
Safety Switch	No

Discharge	0.38 "
Product Length	10.23 "
Product Width	4.75 "
Product Height	6.46 "
Product Weight	5.5 lb
Product Weight w/ Pack	5.5 lb
Carton Length	12 "
Carton Width	4.81 "
Carton Height	6.44 "
Tubing Included	No
